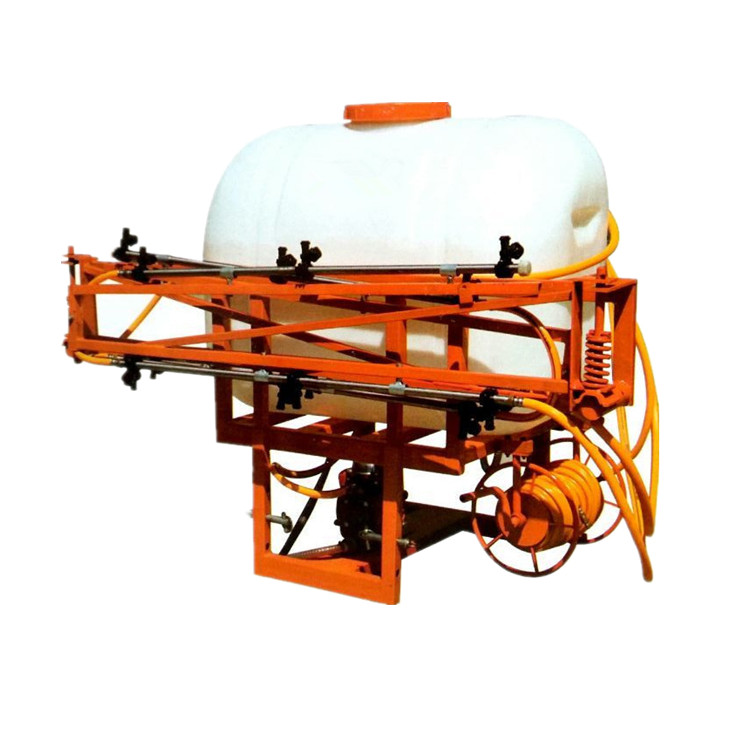

FH-MS450

FH-MS450

0.00
0.00

1) Type: Mounted
2) Container capacity: 450L
3) Flow: 40L-80L/min
4) Spraying width: 8m
5) Working pressure: 0.2-0.4Mpa
6) Rated speed: 600rpm
7) Hydraulic pump: 3 cylinder plunger pump
8) Spraying flow:1.2L/min (0.3mpa)
9) Coefficient of Nozzle Variation: ≤15%
10) Nozzle type: Fan-type Nozzle,anti-drip device
11) Nozzle Qty. and Interval: 15pcs, 500mm
12) Sparying angle: 110o
13) Spraying efficiency: 4-8km/h
14) Net weight: 140kgs
15) Package dimension: 1322x 958x 1217mm
